Resistors are said to be connected together in "Parallel" when both of their terminals are respectively connected to each terminal of the other resistor or resistors. Unlike the previous series circuit, in a parallel resistor network the current can take more than one path. Since there are multiple paths for the supply current to flow through, the current is not the same at all points in a parallel circuit. However, the voltage drop across all of the resistors in a parallel resistive network is the same. Then, Resistors in Parallel have a Common Voltage across them and this is true for all parallel connected elements.

So we can define a parallel resitive circuit as one were the resistors are connected to the same two points (or nodes) and is identified by the fact that it has more than one current path connected to a common voltage source. Then in our parallel resistor example below the voltage across resistor R₁ equals the voltage across resistor R₂ which equals the voltage across R₃ and which equals the supply voltage. Therefore, for a parallel resistor network this is given as:

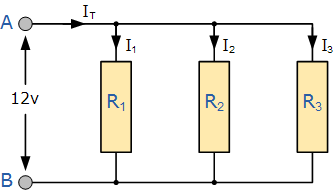

In the following resistors in parallel circuit the resistors R₁, R₂ and R₃ are all connected together in parallel between the two points A and B as shown.

Parallel Resistor Circuit

In the previous series resistor network we saw that the total resistance, R_T of the circuit was equal to the sum of all the individual resistors added together. For resistors in parallel the equivalent circuit resistance R_T is calculated differently.

Here, the reciprocal ( 1/R ) value of the individual resistances are all added together instead of the resistances themselves with the inverse of the algebraic sum giving the equivalent resistance as shown.

Parallel Resistor Equation

Then the inverse of the equivalent resistance of two or more resistors connected in parallel is the algebraic sum of the inverses of the individual resistances. The equivalent resistance is always less than the smallest resistor in the parallel network so the total resistance, R_T will always decrease as additional parallel resistors are added.

Parallel resistance gives us a value known as Conductance, symbol G with the units of conductance being the Siemens, symbol S. Conductance is the reciprocal or the inverse of resistance, ( G = 1/R ). To convert conductance back into a resistance value we need to take the reciprocal of the conductance giving us then the total resistance, R_T of the resistors in parallel.

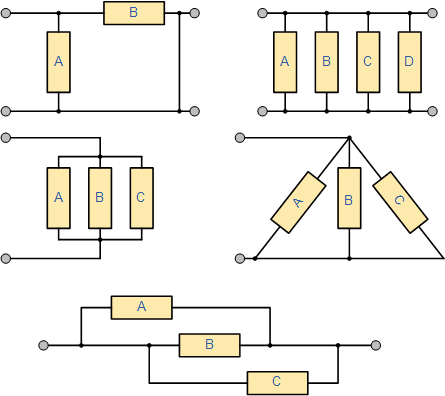

We now know that resistors that are connected between the same two points are said to be in parallel but a parallel circuit can take many forms other than the one above and here are a few examples.

Various Parallel Resistor Circuits

The five resistive networks above may look different to each other, but they are all arranged as Resistors in Parallel.

Example No1

Find the total resistance, R_T of the following resistors connected in a parallel network.

The total resistance R_T across the two terminals A and B is calculated as:

This method of calculation can be used for calculating any number of individual resistances connected together within a single parallel network. If however, there are only two individual resistors in parallel then a much simpler and quicker formula can be used to find the total resistance value, and this is given as:

Example No2

Consider the following circuit with only two resistors in a parallel combination.

Using our two resistor formula above we can calculate the total circuit resistance, R_T as:

One important point to remember about resistors in parallel, is that the total circuit resistance ( R_T ) of any two resistors connected together in parallel will always be LESS than the value of the smallest resistor in that combination. In our example above, the value of the combination was calculated as: R_T = 15kΩ, where as the value of the smallest resistor is 22kΩ, much higher. In other words, the equivalent resistance of a parallel network will always be less than the smallest individual resistor in the combination.

Also, in the case of R₁ being equal to the value of R₂, that is R₁ = R₂, the total resistance of the network will be exactly half the value of one of the resistors, R/2. Likewise, if three or more resistors each with the same value are connected in parallel, then the equivalent resistance will be equal to R/n where R is the value of the resistor and n is the number of individual resistances in the combination.

For example, six 100Ω resistors are connected together in a parallel combination. The equivalent resistance will therefore be:  R_T = R/n = 100/6 = 16.7Ω.

Currents in a Parallel Resistor Circuit

The total current, I_T in a parallel resistor circuit is the sum of the individual currents flowing in all the parallel branches. The amount of current flowing in each parallel branch is not necessarily the same as the value of the resistance in each branch determines the current within that branch. For example, although the parallel combination has the same voltage across it, the resistances could be different therefore the current flowing through each resistor would definitely be different as determined by Ohms Law.

Consider the two resistors in parallel above. The current that flows through each of the resistors ( I_R1 and I_R2 ) connected together in parallel is not necessarily the same value as it depends upon the resistive value of the resistor. However, we do know that the current that enters the circuit at point A must also exit the circuit at point B. Kirchoff's Current Laws. states that "the total current leaving a circuit is equal to that entering the circuit - no current is lost". Thus, the total current flowing in the circuit is given as:

I_T = I_R1 + I_R2

Then by using Ohm's Law, the current flowing through each resistor can be calculated as:

Current flowing in R₁ = V_S ÷ R₁ =  12V ÷ 22kΩ = 0.545mA or 545uA

Current flowing in R₂ = V_S ÷ R₂ =  12V ÷ 47kΩ = 0.255mA or 255uA

giving us a total current I_T flowing around the circuit as:

I_T = 0.545mA + 0.255mA = 0.8mA or 800uA.

The equation given for calculating the total current flowing in a parallel resistor circuit which is the sum of all the individual currents added together is given as:

I_total = I₁ + I₂ + I₃ ..... + I_n

Then parallel resistor networks can also be thought of as a "current divider" because the current splits or divides between the various branches and a parallel resistor circuit having N resistive networks will have N-different current paths while maintaining a common voltage. Parallel resistors can also be interchanged without changing the total resistance or the total circuit current.

Example No3

Calculate the individual branch currents and total current drawn from the supply for the following set of resistors connected together in a parallel combination.

As the supply voltage is common to all the resistors in a parallel circuit, we can use Ohms Law to calculate the individual branch current as follows.

Then the total circuit current, I_T flowing into the parallel resistor combination will be:

This total circuit current value of 5 amperes can also be found and verified by finding the equivalent circuit resistance, R_T of the parallel branch and dividing it into the supply voltage, V_S as follows.

Equivalent circuit resistance:

Then the current flowing in the circuit will be:

Resistors in Parallel Summary

Then to summarise. When two or more resistors are connected so that both of their terminals are respectively connected to each terminal of the other resistor or resistors, they are said to be connected together in parallel. The potential differences across each resistor in the parallel combination is the same but the currents flowing through them are not the same.

The equivalent or total resistance, R_T of a parallel combination is found through reciprocal addition and the total resistance value will always be less than the smallest individual resistor in the combination. Parallel resistor networks can be interchanged within the same combination without changing the total resistance or total circuit current. Resistors connected together in a parallel circuit will continue to operate even though one resistor may be open-circuited.

Thus far we have seen resistor networks connected in either a series or a parallel combination. In the next tutorial about Resistors, we will look at connecting resistors together in both a series and parallel combination at the same time producing a mixed or combinational resistor circuit.
